The Diode Test
3. Putting Your Multimeter to Work

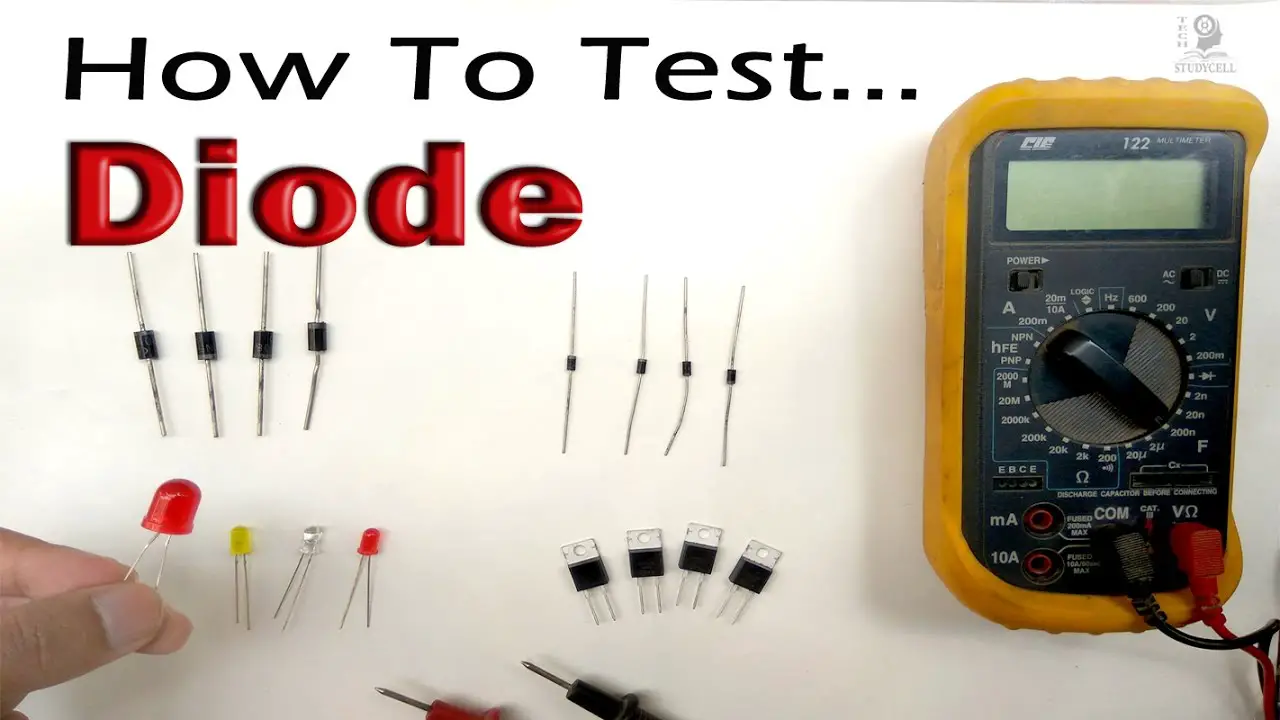

Okay, you've got your multimeter, your diode, and a healthy dose of curiosity. Now it's time to get down to business and actually test that diode! The first thing you'll want to do is identify the anode and cathode of the diode. The anode is the positive side, and the cathode is the negative side. Most diodes have a band or stripe on the cathode end, making it easy to tell them apart. If there's no band, you might need to consult the diode's datasheet.
Next, turn on your multimeter and set it to the "diode test" function. If your multimeter doesn't have this function, you can use the resistance setting, but the diode test is generally more reliable. Once your multimeter is set up, connect the red probe (positive) to the anode of the diode and the black probe (negative) to the cathode. This is called "forward bias."
Now, observe the reading on your multimeter. A good diode should show a voltage drop somewhere between 0.5V and 0.8V for silicon diodes (the most common type). If you see a reading close to 0V or OL (overload), it means the diode is likely shorted. Now, reverse the probes — connect the red probe to the cathode and the black probe to the anode. This is "reverse bias." In this direction, a good diode should show OL or a very high resistance, indicating that it's blocking the flow of current.
If the diode shows a low resistance in both directions, it's probably shorted. If it shows OL in both directions, it's probably open. And if it shows a voltage drop outside the typical range (0.5V-0.8V) in the forward direction, it might be leaky or otherwise damaged. Remember, these are just general guidelines, and the exact readings can vary depending on the type of diode. But with a little practice, you'll become a diode-testing pro in no time!
