Ever wondered how to power a delicate 5V gadget from a beefier 9V battery? It's all about tricking electricity into doing exactly what you want, and the unsung heroes in this electrical ballet are resistors! Think of them as tiny electrical speed bumps. They don't stop the flow, but they definitely slow it down, and that slowing down translates directly into a voltage drop.

Imagine a water slide. A 9V battery is like a super tall slide, and your 5V gadget can only handle a medium-sized one. You need to somehow divert some of that energy. Resistors, strategically placed, bleed off some of that voltage, bringing it down to a level your device can safely handle. Without them, you'd fry your precious electronics and nobody wants that!

So, when we talk about dropping 9V to 5V, we're essentially looking for the right combination of these electrical speed bumps. The goal isn't to magically destroy the extra voltage, but to redirect it in a controlled manner. It's more like a clever detour than a demolition job.

This all hinges on something called a voltage divider, a simple circuit made of two resistors. It's the rockstars of voltage control! It works by carefully distributing the voltage between the two resistors, creating a lower voltage output that's safe for your device. Lets delve a little deeper.

Resistor Voltage Reduction Calculator At Yolanda Meneses Blog

The Resistor Ratio Tango

2. Playing with Numbers (But Not Really That Hard!)

The key to understanding this is that the voltage drop across each resistor is proportional to its resistance value. In simpler terms, if one resistor has twice the resistance of the other, it will drop twice as much voltage. Think of it like splitting a pizza the bigger the slice, the more you get!

In our case, we want to drop 4V (9V - 5V = 4V). So, we need to choose two resistors in such a way that 4/9 of the voltage drops across one resistor, and 5/9 drops across the other. The ratio of these resistors will determine the output voltage.

The most common and practical approach is to use two resistors in series. The total resistance in the circuit is simply the sum of the individual resistances. Then, using Ohm's law (Voltage = Current Resistance), we can determine how the voltage is divided. Don't worry, we'll get to the calculations in a moment.

Getting this ratio right is paramount. Too much resistance on one side, and your device gets starved. Too little, and you end up with a smoking heap of components. Finding the sweet spot is part science, part art, and a whole lot of fun (if you're into that sort of thing!).

Calculating the Magic Numbers: Let's Do Some Math! (Just a Little!)

3. Ohm's Law and Voltage Dividers

Here's where things get slightly technical, but I promise it's not rocket science. We'll use a voltage divider formula: V_out = V_in (R₂ / (R₁ + R₂)) Where: V_out is the output voltage (5V in our case) V_in is the input voltage (9V) R₁ is the resistance of the first resistor R₂ is the resistance of the second resistor (the one connected to ground)

Let's rearrange the formula to solve for the ratio of the resistors: R₁ / R₂ = (V_in / V_out) - 1 Plugging in our values: R₁ / R₂ = (9V / 5V) - 1 = 1.8 - 1 = 0.8

This tells us that R₁ should be 0.8 times the value of R₂. So, if we choose a standard value for R₂, say 1000 ohms (1k), then R₁ should be 800 ohms. Since 800 ohms is not a standard value, you can choose the nearest standard value, such as 820 ohms. You might not get exactly 5V, but very close to it.

It's crucial to select appropriate resistor values. If the values are too low, the current drawn from the 9V battery will be excessively high, leading to rapid battery drain and potentially overheating the resistors. On the other hand, If the resistance values are too high, the voltage will be more susceptible to fluctuations if there's any load on the 5V output.

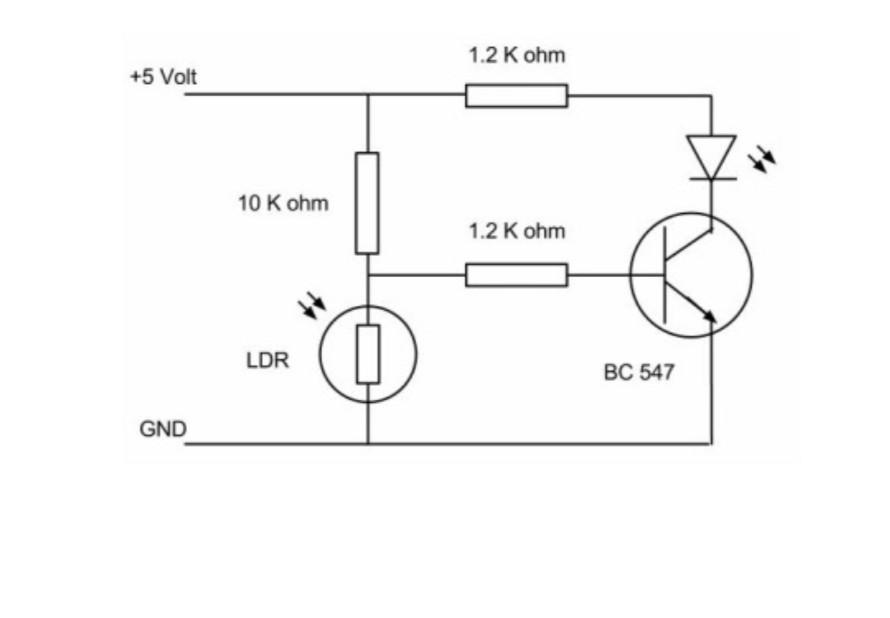

Solved Apply The 5v By Using 9v Battery And Voltage

Practical Considerations

4. Picking the Right Resistors, Dealing with Tolerances

Okay, so you've done the math, picked your resistors, and built your voltage divider. But hold on, the real world isn't always as neat and tidy as theoretical calculations. Resistors aren't perfect; they have a tolerance, usually expressed as a percentage. This means that a 1k resistor with a 5% tolerance could actually be anywhere between 950 and 1050. This variation can affect the output voltage.

Consider the power rating of the resistors. They need to be able to handle the power dissipated as heat. The power dissipated by a resistor is calculated as P = V² / R, where V is the voltage across the resistor and R is its resistance. Make sure the resistors you choose have a power rating that's significantly higher than the calculated power dissipation to prevent them from overheating and failing. As a good practice, select resistors with a power rating at least twice the expected dissipation.

When sourcing your resistors, it is also important to be mindful of the supply chain. Purchasing from reputable suppliers ensures you are receiving quality components that meet specifications. This helps prevent unexpected issues or failures down the line.

It's always a good idea to use a multimeter to actually measure the output voltage after you've built your circuit. Fine-tuning the resistor values, if necessary, ensures the device receives the correct voltage.

DC To Converter 9v 5v Using IC 7805 From Battery

Beyond the Basics

5. Alternatives and Advanced Techniques

While the voltage divider is a simple and effective solution, it's not always the best. The downside of voltage dividers is that they draw current continuously, even when the connected device isn't actively using power. This can lead to battery drain. Also, the output voltage can change depending on the load connected to it. If the load draws significant current, the voltage can drop below 5V.

There are more sophisticated solutions such as voltage regulators. Voltage regulators are electronic circuits that maintain a constant output voltage, regardless of variations in input voltage or load current. They are more efficient than voltage dividers and provide a stable output voltage. Common voltage regulators include the LM7805, which is a popular choice for providing a stable 5V output.

Another option, depending on your project requirements, is to consider a DC-DC converter. These modules efficiently convert one DC voltage level to another, often with better efficiency and regulation than simple resistor dividers. They are readily available in various forms, including buck converters (step-down) and boost converters (step-up).

Ultimately, the best approach depends on the specific requirements of your project, including the load current, accuracy, and efficiency requirements. For simple, low-power applications, a voltage divider might suffice. But for more demanding applications, a voltage regulator or DC-DC converter is generally preferred.
