Decoding Hz on Your Multimeter

1. Unveiling the Frequency Measurement

Ever stared at your multimeter, seen that "Hz" symbol, and wondered what exactly it signifies? You're not alone! "Hz" stands for Hertz, and it's the unit of measurement for frequency. Think of frequency as how often something repeats itself in one second. Imagine a light blinking; if it blinks once every second, that's a frequency of 1 Hz. A sound wave that vibrates 440 times a second (like the note A above middle C) has a frequency of 440 Hz. On a multimeter, Hz measures the frequency of alternating current (AC) signals. This is super useful for diagnosing problems in electronics and electrical circuits.

So, why should you care about Hertz on your multimeter? Well, it can tell you a lot about the AC power in your home or office. In most countries, the standard AC power frequency is either 50 Hz or 60 Hz. If your multimeter shows a significantly different reading, it could indicate a problem with the power supply. It's like checking the pulse of your electrical system — a healthy pulse means everything is working smoothly, while an irregular pulse signals potential trouble.

Understanding Hz isn't just about avoiding blown fuses; it's about understanding how electricity behaves. Knowing the frequency of an AC signal can help you troubleshoot audio equipment (like confirming a signal generator is outputting the correct tone), test sensors, and even diagnose problems with motors. Think of it as detective work for electrical circuits, with your multimeter as your trusty magnifying glass.

Frequency, in essence, dictates the rhythm of electrical signals. A higher frequency means the signal is oscillating faster, while a lower frequency means it's oscillating slower. This rhythm plays a crucial role in how various electronic components behave. Therefore, the "Hz" reading on your multimeter is far from being just a random number; it's a window into the dynamic workings of your electrical system.

How To Measure Frequency Using A Multimeter? Two Ways

Why Measuring Frequency Matters

2. Practical Applications of Frequency Measurement

Okay, so you know what Hz means, but where does it actually come in handy? Imagine you're a sound engineer trying to tune a synthesizer. The "Hz" reading on your multimeter or frequency counter can confirm that the synthesizer is outputting the correct frequencies for each note. It's like having a musical tuning fork, but for electronic signals! It's all about ensuring the sound is precisely what you intend to create.

Another useful application lies in diagnosing problems with AC motors. Motors are designed to operate at specific frequencies, often tied to the power grid frequency (50 Hz or 60 Hz). If a motor is running erratically, measuring the frequency of the power feeding it can help you determine if the issue is a power supply problem or a motor fault. It helps you to quickly narrow down the potential causes of the malfunction.

Moreover, frequency measurement is essential in telecommunications. Radio waves, Wi-Fi signals, and even the signals traveling through your phone lines all operate at specific frequencies. Technicians use specialized equipment, including multimeters with frequency measurement capabilities, to ensure these signals are within the correct range and are transmitting properly. Essentially, the reliable communications we depend on hinge on the accurate measurement and control of signal frequencies.

Think of frequency measurements as the backbone of many electronic systems. From ensuring the stability of power grids to fine-tuning musical instruments, the ability to accurately measure frequency is paramount. A multimeter capable of measuring Hz becomes an indispensable tool for anyone working with electrical or electronic devices, enabling them to diagnose problems, optimize performance, and ensure the reliable operation of systems.

Multimeter Symbols (Ultimate Guide) ToolsGaloreHQ

How to Use Your Multimeter to Measure Hz

3. Setting up and Taking Readings

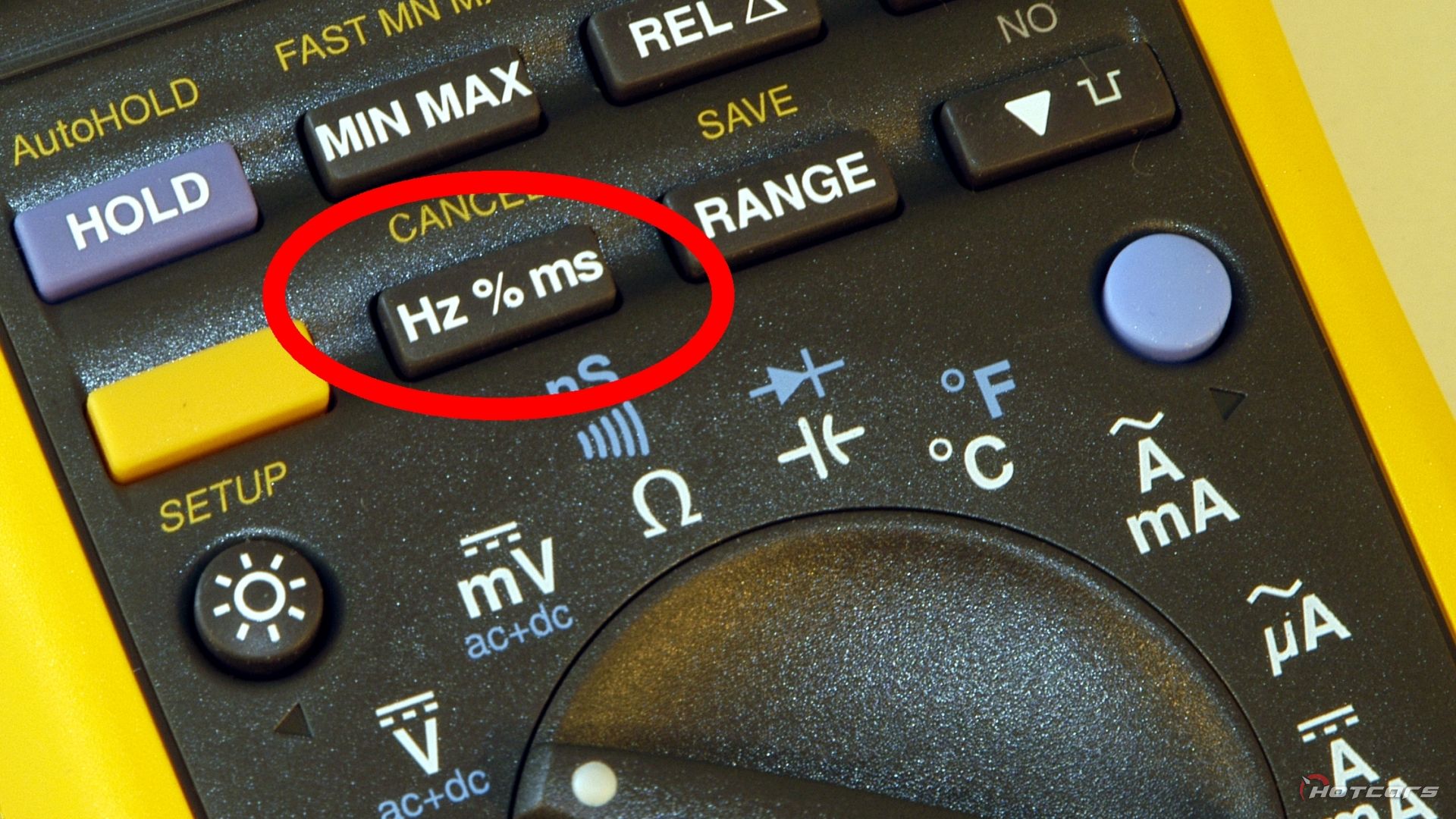

Alright, let's get practical. How do you actually measure Hz with your multimeter? First, make sure your multimeter has a frequency measurement function. Look for the "Hz" symbol or a function labeled "Frequency." Once you've found it, select that function on your multimeter's dial. You'll typically need to plug your test leads into the correct input jacks — usually the same ones you'd use for measuring voltage.

Now, connect your test leads to the circuit or device you want to measure. Be careful and ensure the circuit is de-energized unless you are specifically trained and equipped to measure live circuits. Connect the black lead to the ground or neutral point of the circuit and the red lead to the point where you want to measure the frequency. With a live circuit, start with a higher voltage range to protect your multimeter.

Once the leads are connected, your multimeter should display the frequency of the AC signal. The reading will typically be in Hertz (Hz). If you're not getting a reading or the reading is erratic, double-check your connections and make sure you've selected the correct function on your multimeter. Sometimes, the signal might be too weak, and you'll need to use a signal amplifier or adjust the multimeter's sensitivity.

Remember, safety is paramount when working with electricity. Always ensure the circuit is properly isolated, and use appropriate personal protective equipment, such as safety glasses and insulated gloves. With the correct setup and precautions, measuring frequency with your multimeter becomes a straightforward and valuable tool for understanding and diagnosing electrical systems. Think of it as giving you the ability to "listen" to the rhythm of electricity, a crucial sense for any electrician or electronics enthusiast.

How To Use A Multimeter On Car

Common Mistakes to Avoid When Measuring Frequency

4. Troubleshooting Your Measurements

Even with a good multimeter and a solid understanding of what Hz means, it's easy to make mistakes when measuring frequency. One common error is selecting the wrong range on your multimeter. If the frequency is too high for the selected range, you might get an inaccurate reading or no reading at all. Always start with a higher range and then decrease it until you get a stable and accurate reading.

Another common mistake is having poor connections. Loose or dirty test leads can introduce noise and interference, which can throw off your frequency readings. Make sure your test leads are clean and securely connected to both your multimeter and the circuit you're measuring. It's like making sure your stethoscope is properly placed to hear a heartbeat clearly.

Also, be aware of harmonic distortion. In some circuits, the AC signal might not be a pure sine wave. It can contain harmonics, which are multiples of the fundamental frequency. Your multimeter might display a slightly different frequency reading if it's picking up these harmonics. Understanding the nature of the signal you're measuring is important for interpreting the results accurately.

Finally, be very cautious when measuring high-voltage circuits. Incorrectly connecting your multimeter or using damaged equipment can lead to electric shock or damage to your meter. Always double-check your connections and ensure your multimeter is rated for the voltage you're measuring. Following safety guidelines can prevent dangerous mistakes and ensure accurate measurements. It's all about taking the process seriously and prioritizing safety above all else.

Difference Between 50 Hz And 60 Frequency System

FAQ

5. Your Burning Questions Answered

Let's tackle some of the common questions people have about measuring frequency with a multimeter.

Q: My multimeter doesn't have a Hz function. What can I do?

A: Not all multimeters have a frequency measurement function. If yours doesn't, you'll need to use a dedicated frequency counter or oscilloscope. These tools are specifically designed for measuring frequency and can provide more accurate readings, especially for higher frequencies.

Q: Can I measure the frequency of DC signals?

A: No, frequency is a characteristic of alternating current (AC) signals, not direct current (DC) signals. DC signals have a constant voltage or current and don't oscillate like AC signals. Thus, the concept of "frequency" doesn't apply to DC.

Q: The Hz reading on my multimeter is fluctuating wildly. What does that mean?

A: A fluctuating frequency reading could indicate several things. It could be due to noise or interference in the circuit, a loose connection, or a problem with the signal source itself. Try improving your connections, shielding the circuit from external interference, or checking the signal source for stability. A faulty sensor can lead to fluctuating frequency readings, as can a power supply that's not delivering a stable frequency.

Q: Is a higher frequency always better?

A: Not necessarily. The "ideal" frequency depends entirely on the application. For example, in AC power systems, the frequency is carefully regulated at 50 Hz or 60 Hz because many devices are designed to operate at that specific frequency. In other applications, like radio communication, higher frequencies are used for transmitting more data. So, it's all about having the right frequency for the job!
